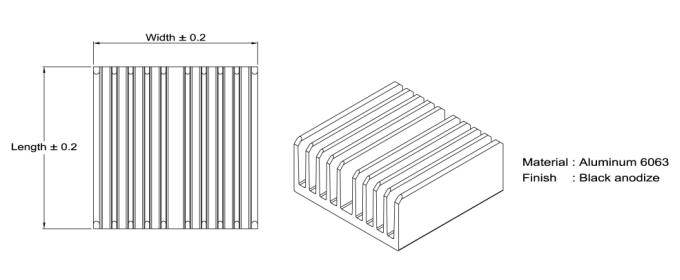

H 22×22 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
H22-06 22 22 22 6 12.51 5.93 4.35 3.71
H22-10 22 22 22 10 11.58 5.20 3.78 3.18
H22-13 22 22 22 13 10.82 4.45 3.25 2.73
