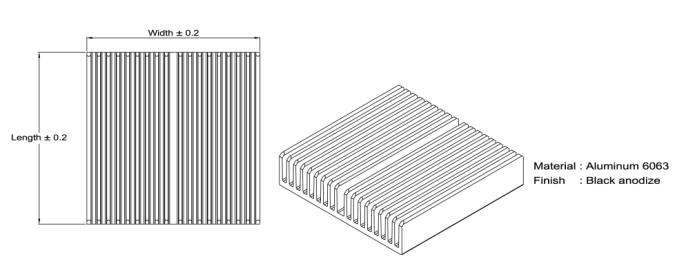

H 42.5×42.5 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
H42.5-06 42.5 42.5 42.5 6 9.32 3.15 2.01 1.54
H42.5-10 42.5 42.5 42.5 10 8.56 2.61 1.61 1.18
H42.5-13 42.5 42.5 42.5 13 7.74 2.14 1.22 0.83
