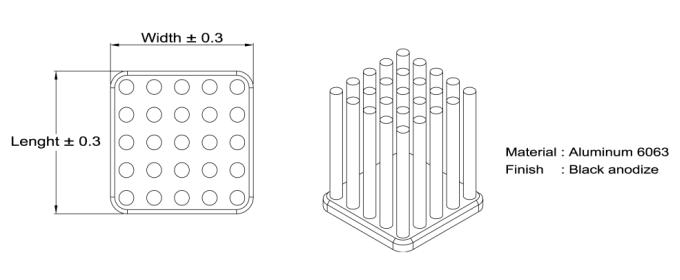

MP 17×17 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MP17-11 17 17 17 11 15.17 7.82 5.90 5.17
MP17-14 17 17 17 14 14.27 7.38 5.51 4.82
MP17-17 17 17 17 17 13.28 6.96 5.07 4.36
MP17-20 17 17 17 20 12.70 6.51 4.75 4.06
MP17-22 17 17 17 22 12.07 6.08 4.39 3.72
MP17-27 17 17 17 27 11.33 5.61 4.07 3.44
MP17-32 17 17 17 32 10.62 5.23 3.81 3.24
