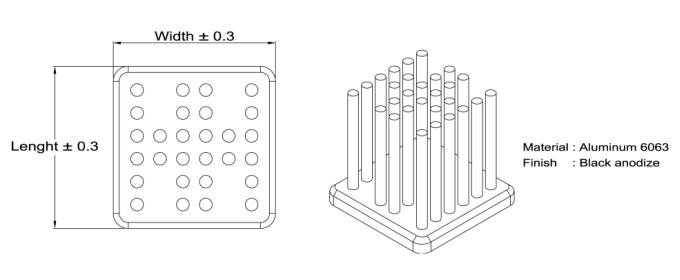

MP 22×22 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MP22-12 22 22 22 12 13.63 6.18 4.30 3.56
MP22-15 22 22 22 15 13.25 5.85 4.01 3.29
MP22-18 22 22 22 18 12.85 5.50 3.67 2.95
MP22-21 22 22 22 21 12.51 5.18 3.41 2.72
MP22-23 22 22 22 23 12.14 4.86 3.17 2.54
MP22-28 22 22 22 28 11.17 4.47 2.91 2.31
MP22-33 22 22 22 33 10.56 4.19 2.71 2.13
