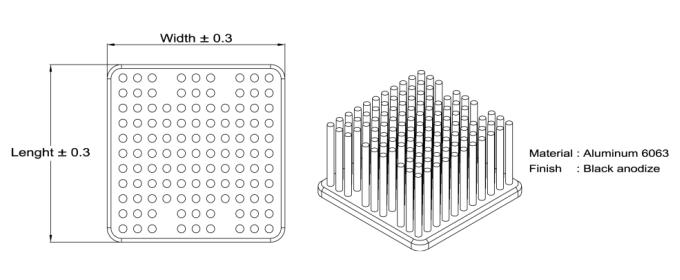

MP 37.5×37.5 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MP37.5-12 37.5 37.5 37.5 12 9.78 3.29 1.90 1.39
MP37.5-15 37.5 37.5 37.5 15 9.43 2.99 1.70 1.23
MP37.5-18 37.5 37.5 37.5 18 9.02 2.77 1.56 1.07
MP37.5-21 37.5 37.5 37.5 21 8.80 2.54 1.36 0.90
MP37.5-23 37.5 37.5 37.5 23 8.49 2.33 1.19 0.76
MP37.5-28 37.5 37.5 37.5 28 7.86 2.07 1.01 0.64
MP37.5-33 37.5 37.5 37.5 33 7.37 1.83 0.84 0.54
