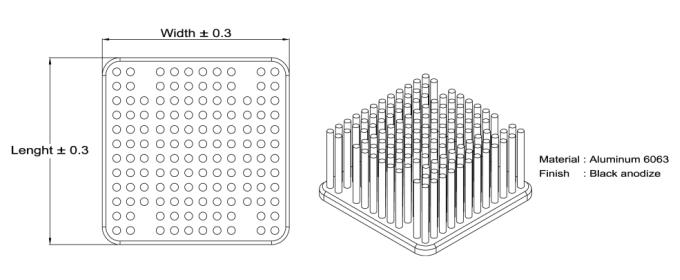

MP 42.5×42.5 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MP42.5-12 42.5 42.5 42.5 12 8.67 2.96 1.71 1.23
MP42.5-15 42.5 42.5 42.5 15 8.30 2.74 1.51 1.03
MP42.5-18 42.5 42.5 42.5 18 7.92 2.53 2.36 0.89
MP42.5-21 42.5 42.5 42.5 21 7.61 2.34 1.18 0.73
MP42.5-23 42.5 42.5 42.5 23 7.29 2.16 1.04 0.64
MP42.5-28 42.5 42.5 42.5 28 6.50 1.96 0.91 0.53
MP42.5-33 42.5 42.5 42.5 33 6.15 1.73 0.75 0.43
