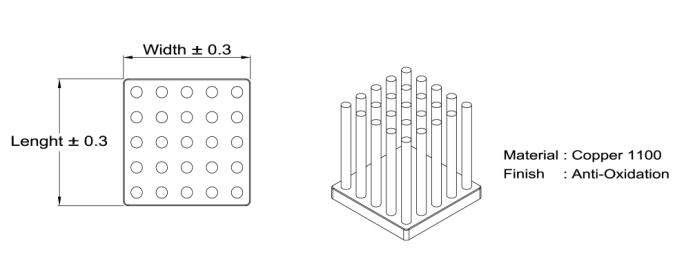

MPC 14×14 Series

Part No. Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Length height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC14-11 14 11 16.70 8.48 6.60 5.75
MPC14-14 14 14 15.54 8.14 6.32 5.51
MPC14-17 14 17 15.03 7.83 6.05 5.28
MPC14-20 14 20 14.33 7.45 5.72 5.05
MPC14-22 14 22 13.85 7.12 5.45 4.80
