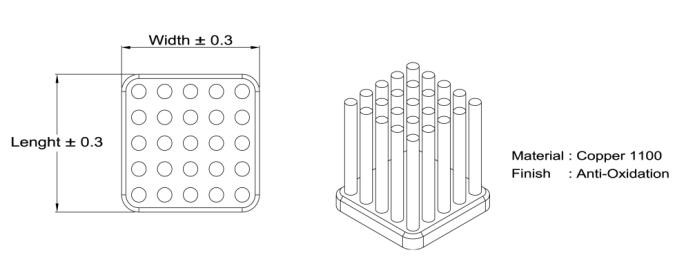

MPC 16×16 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC16-11 16 16 16 11 16.15 7.35 5.66 4.94
MPC16-14 16 16 16 14 15.36 6.88 5.24 4.60
MPC16-17 16 16 16 17 14.31 6.48 4.82 4.24
MPC16-20 16 16 16 20 13.87 6.02 4.53 3.96
MPC16-22 16 16 16 22 13.29 5.56 4.17 3.69
MPC16-27 16 16 16 27 12.48 5.23 3.88 3.40
MPC16-32 16 16 16 32 11.69 4.83 3.60 3.20
