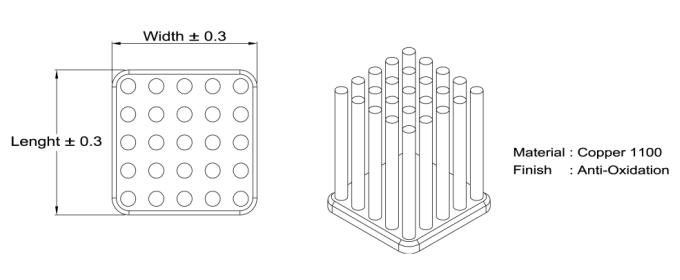

MPC 17×17 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC17-11 17 17 17 11 14.98 6.92 5.24 4.55
MPC17-14 17 17 17 14 14.08 6.51 4.87 4.22
MPC17-17 17 17 17 17 13.10 6.15 4.55 3.88
MPC17-20 17 17 17 20 12.53 5.75 4.21 3.62
MPC17-22 17 17 17 22 11.91 5.34 3.89 3.39
MPC17-27 17 17 17 27 11.19 4.98 3.63 3.15
MPC17-32 17 17 17 32 10.48 4.66 3.41 2.98
