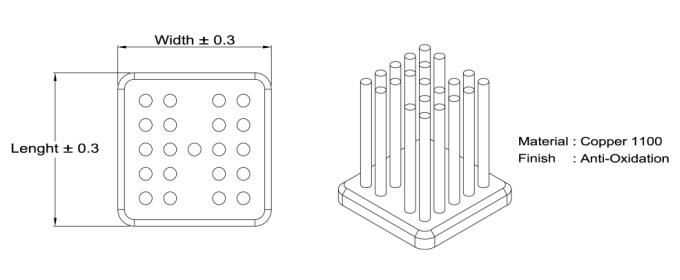

MPC 19×19 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC19-12 19 19 19 12 14.08 6.08 4.39 2.95
MPC19-15 19 19 19 15 13.70 5.79 4.12 3.47
MPC19-18 19 19 19 18 13.32 5.50 3.80 3.17
MPC19-21 19 19 19 21 12.90 5.21 3.56 2.93
MPC19-23 19 19 19 23 12.48 4.90 3.33 2.79
MPC19-28 19 19 19 28 11.50 4.47 3.07 2.54
MPC19-33 19 19 19 33 10.98 4.15 2.84 2.34
