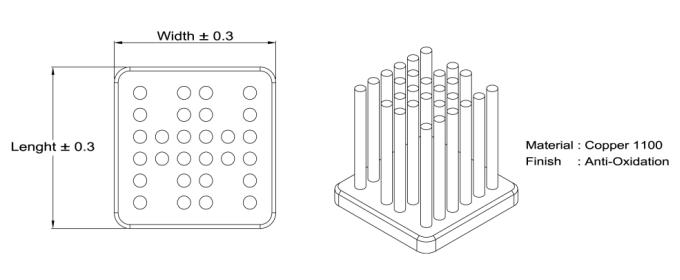

MPC 21×21 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC21-12 21 21 21 12 13.63 5.63 3.98 3.38
MPC21-15 21 21 21 15 13.24 5.35 3.73 3.11
MPC21-18 21 21 21 18 12.87 5.07 3.44 2.84
MPC21-21 21 21 21 21 12.47 4.79 3.22 2.63
MPC21-23 21 21 21 23 12.05 4.50 3.00 2.50
MPC21-28 21 21 21 28 11.11 4.11 2.74 2.26
MPC21-33 21 21 21 33 10.59 3.81 2.55 2.09
