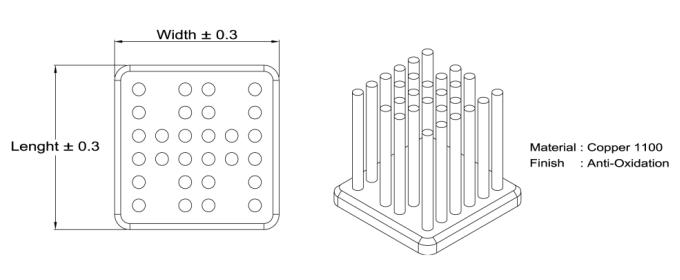

MPC 22×22 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC22-12 22 22 22 12 13.40 5.41 3.78 3.20
MPC22-15 22 22 22 15 13.01 5.13 3.53 2.93
MPC22-18 22 22 22 18 12.65 4.86 3.26 2.68
MPC22-21 22 22 22 21 12.25 4.58 3.05 2.48
MPC22-23 22 22 22 23 11.83 4.30 2.83 2.35
MPC22-28 22 22 22 28 11.36 3.92 2.59 2.13
MPC22-33 22 22 22 33 10.91 3.64 2.40 1.97
