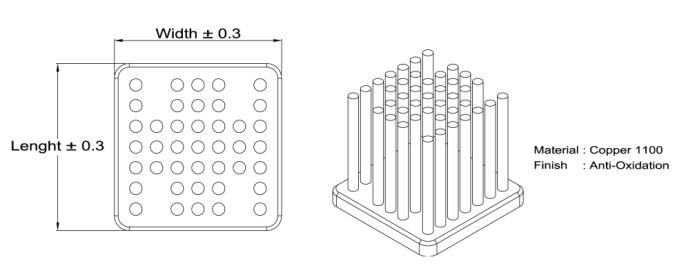

MPC 23×23 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC23-12 23 23 23 12 13.39 5.18 3.57 3.01
MPC23-15 23 23 23 15 12.77 4.91 3.34 2.75
MPC23-18 23 23 23 18 12.43 4.64 3.07 2.51
MPC23-21 23 23 23 21 12.03 4.37 2.88 2.32
MPC23-23 23 23 23 23 11.61 4.11 2.67 2.20
MPC23-28 23 23 23 28 10.71 3.74 2.44 1.99
MPC23-33 23 23 23 33 10.21 3.47 2.25 1.85
