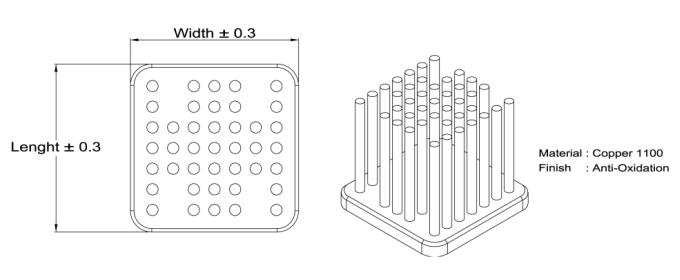

MPC 24×24 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC24-12 24 24 24 12 12.95 4.96 3.37 2.83
MPC24-15 24 24 24 15 12.54 4.68 3.14 2.57
MPC24-18 24 24 24 18 12.20 4.43 2.89 2.35
MPC24-21 24 24 24 21 11.81 4.16 2.70 2.19
MPC24-23 24 24 24 23 11.40 3.91 2.50 2.01
MPC24-28 24 24 24 28 10.52 3.56 2.29 1.85
MPC24-33 24 24 24 33 10.01 3.30 2.11 1.72
