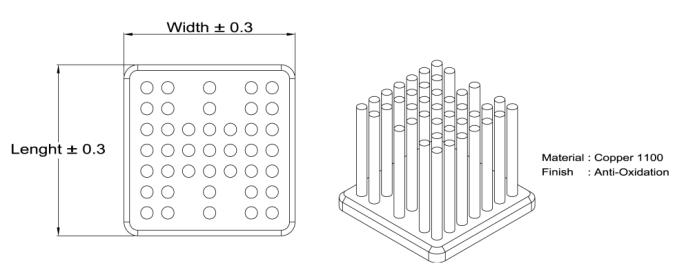

MPC 25×25 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC25-12 25 25 25 12 12.72 4.73 3.17 2.64
MPC25-15 25 25 25 15 12.31 4.46 2.95 2.39
MPC25-18 25 25 25 18 11.98 4.21 2.71 2.18
MPC25-21 25 25 25 21 11.60 3.95 2.53 2.02
MPC25-23 25 25 25 23 11.18 3.71 2.33 1.90
MPC25-28 25 25 25 28 10.32 3.38 2.13 1.71
MPC25-33 25 25 25 33 9.82 3.13 1.96 1.59
