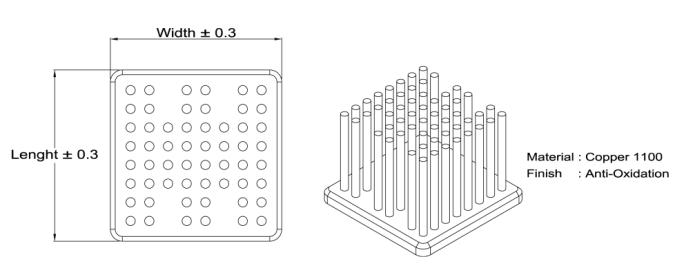

MPC 29×29 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC29-12 29 29 29 12 11.86 4.09 2.64 1.99
MPC29-15 29 29 29 15 11.56 3.83 2.40 1.78
MPC29-18 29 29 29 18 11.23 3.57 2.20 1.61
MPC29-21 29 29 29 21 10.95 3.38 2.02 1.46
MPC29-23 29 29 29 23 10.54 3.19 1.84 1.33
MPC29-28 29 29 29 28 9.76 2.91 1.65 1.21
MPC29-33 29 29 29 33 9.21 2.65 1.49 1.10
