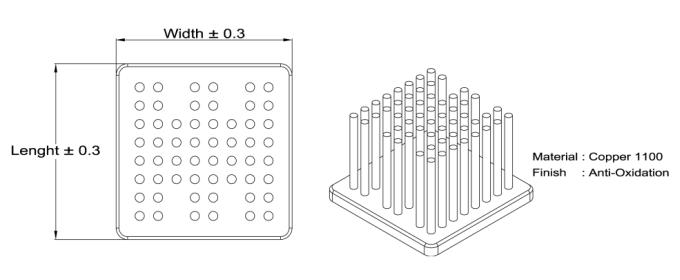

MPC 31×31 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC31-12 31 31 31 12 11.31 3.55 2.39 1.80
MPC31-15 31 31 31 15 10.92 3.31 2.16 1.54
MPC31-18 31 31 31 18 10.54 3.06 1.94 1.37
MPC31-21 31 31 31 21 10.21 2.85 1.77 1.21
MPC31-23 31 31 31 23 9.79 2.60 1.61 1.07
MPC31-28 31 31 31 28 9.05 2.42 1.45 0.95
MPC31-33 31 31 31 33 8.58 2.22 1.26 0.83
