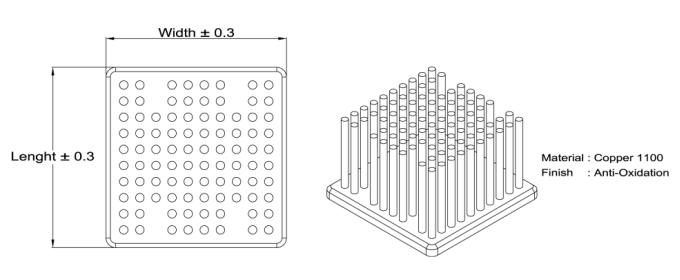

MPC 34×34 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC34-12 34 34 34 12 10.57 3.44 2.12 1.57
MPC34-15 34 34 34 15 10.18 3.22 1.90 1.36
MPC34-18 34 34 34 18 9.89 2.99 1.67 1.15
MPC34-21 34 34 34 21 9.53 2.76 1.49 1.00
MPC34-23 34 34 34 23 9.12 2.55 1.33 0.90
MPC34-28 34 34 34 28 8.35 2.31 1.17 0.77
MPC34-33 34 34 34 33 8.02 2.10 1.02 0.65
