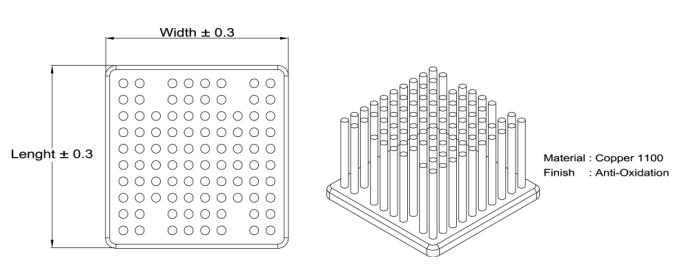

MPC 35×35 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC35-12 35 35 35 12 10.35 3.37 2.02 1.50
MPC35-15 35 35 35 15 9.99 3.12 1.79 1.30
MPC35-18 35 35 35 18 9.54 2.89 1.57 1.09
MPC35-21 35 35 35 21 9.26 2.68 1.39 0.95
MPC35-23 35 35 35 23 8.84 2.46 1.23 0.84
MPC35-28 35 35 35 28 8.17 2.22 1.08 0.72
MPC35-33 35 35 35 33 7.73 2.02 0.97 0.63
