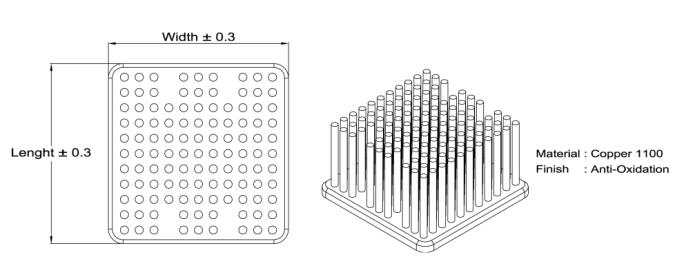

MPC 37.5×37.5 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC37.5-12 37.5 37.5 37.5 12 9.72 3.34 1.95 1.39
MPC37.5-15 37.5 37.5 37.5 15 9.37 3.09 1.73 1.19
MPC37.5-18 37.5 37.5 37.5 18 8.96 2.81 1.51 0.98
MPC37.5-21 37.5 37.5 37.5 21 8.74 2.56 1.30 0.85
MPC37.5-23 37.5 37.5 37.5 23 8.43 2.30 1.15 0.74
MPC37.5-28 37.5 37.5 37.5 28 7.81 2.03 0.95 0.61
MPC37.5-33 37.5 37.5 37.5 33 7.32 1.82 0.82 0.52
