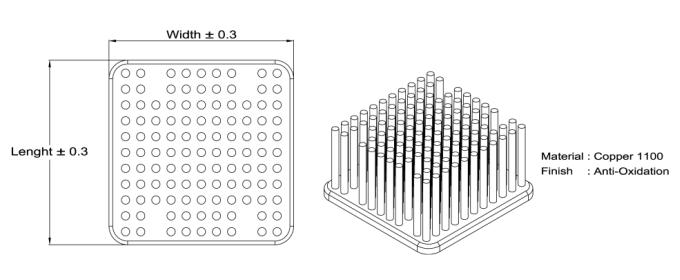

MPC 40×40 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MPC40-12 40 40 40 12 9.16 3.17 1.73 1.29
MPC40-15 40 40 40 15 8.83 2.96 1.55 1.09
MPC40-18 40 40 40 18 8.30 2.73 1.35 0.93
MPC40-21 40 40 40 21 8.08 2.49 1.20 0.79
MPC40-23 40 40 40 23 7.65 2.28 1.05 0.70
MPC40-28 40 40 40 28 7.07 2.01 0.87 0.56
MPC40-33 40 40 40 33 6.66 1.78 0.73 0.46
