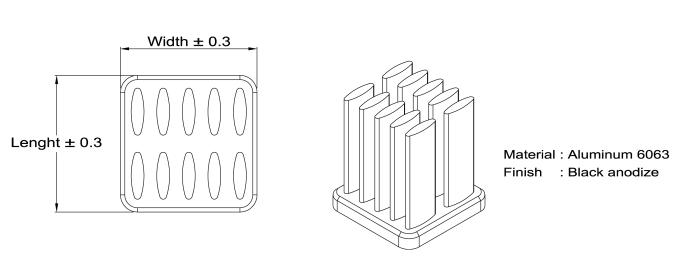

MW 16×16 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW16-11 16 16 16 11 16.30 8.16 6.30 5.57
MW16-14 16 16 16 14 15.43 7.73 5.28 5.09
MW16-17 16 16 16 17 14.48 7.25 5.34 4.65
MW16-20 16 16 16 20 13.99 6.70 4.94 4.27
MW16-22 16 16 16 22 13.40 6.26 4.59 3.94
MW16-27 16 16 16 27 12.55 5.58 4.13 3.58
MW16-32 16 16 16 32 12.17 5.23 3.89 3.37
