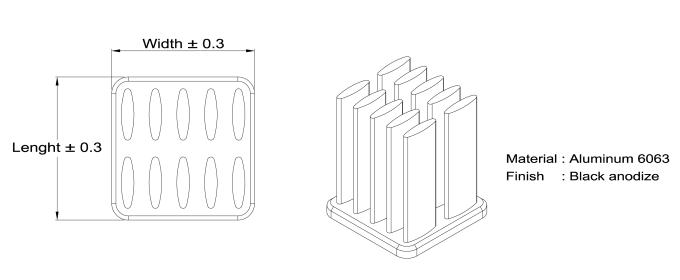

MW 17×17 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW17-11 17 17 17 11 15.65 7.84 6.10 5.43
MW17-14 17 17 17 14 14.93 7.16 5.54 4.87
MW17-17 17 17 17 17 14.20 6.55 4.93 4.31
MW17-20 17 17 17 20 13.72 6.04 4.56 3.93
MW17-22 17 17 17 22 13.14 5.74 4.25 3.69
MW17-27 17 17 17 27 12.31 5.11 3.80 3.41
MW17-32 17 17 17 32 11.93 4.83 3.61 3.18
