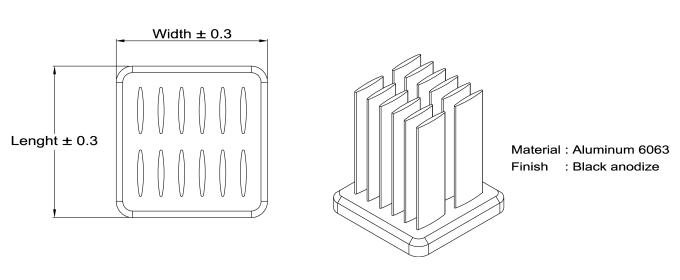

MW 19×19 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW19-12 19 19 19 12 14.47 6.37 4.92 4.26
MW19-15 19 19 19 15 14.06 5.89 4.48 3.84
MW19-18 19 19 19 18 13.64 5.45 4.03 3.48
MW19-21 19 19 19 21 13.36 5.08 3.70 3.15
MW19-23 19 19 19 23 13.24 4.70 3.47 2.98
MW19-28 19 19 19 28 12.82 4.21 3.15 2.74
MW19-33 19 19 19 33 11.44 3.88 2.88 2.54
