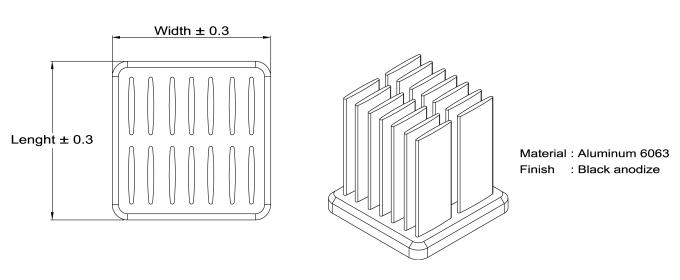

MW 21×21 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW21-12 21 21 21 12 14.04 5.59 3.73 3.08
MW21-15 21 21 21 15 13.64 5.10 3.46 2.82
MW21-18 21 21 21 18 13.23 4.76 3.24 2.59
MW21-21 21 21 21 21 12.96 4.43 3.00 2.40
MW21-23 21 21 21 23 12.84 4.15 2.81 2.25
MW21-28 21 21 21 28 12.44 3.74 2.52 2.04
MW21-33 21 21 21 33 11.10 3.43 2.29 1.90
