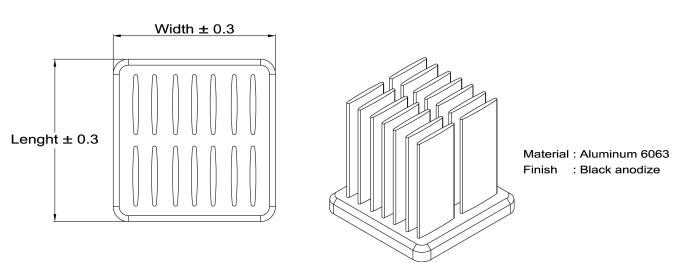

MW 22×22 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW22-12 22 22 22 12 13.76 5.10 3.45 2.92
MW22-15 22 22 22 15 13.37 4.78 3.19 2.68
MW22-18 22 22 22 18 12.97 4.42 2.93 2.43
MW22-21 22 22 22 21 12.70 4.12 2.69 2.22
MW22-23 22 22 22 23 12.59 3.84 2.52 2.10
MW22-28 22 22 22 28 12.19 3.50 2.28 1.91
MW22-33 22 22 22 33 10.88 3.28 2.11 1.75
