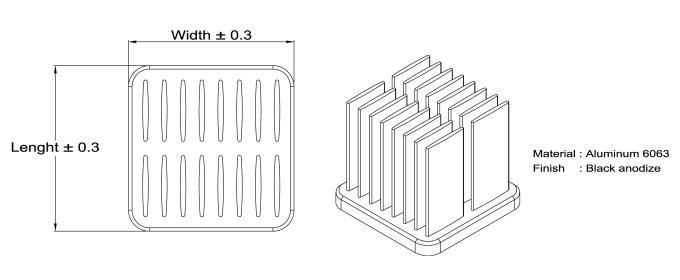

MW 24×24 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW24-12 24 24 24 12 12.89 4.49 3.16 2.65
MW24-15 24 24 24 15 12.36 4.12 2.86 2.39
MW24-18 24 24 24 18 11.88 3.80 2.62 2.15
MW24-21 24 24 24 21 11.47 3.55 2.41 1.97
MW24-23 24 24 24 23 11.09 3.32 2.26 1.86
MW24-28 24 24 24 28 10.23 2.98 2.02 1.66
MW24-33 24 24 24 33 9.41 2.71 1.80 1.51
