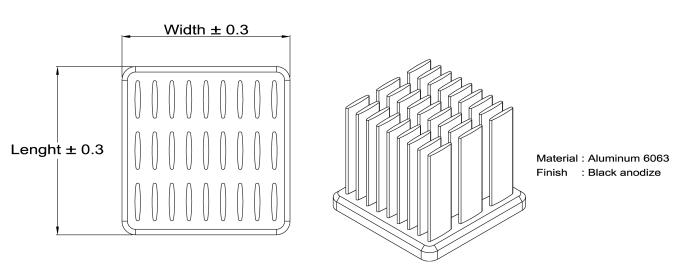

MW 25×25 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW25-12 25 25 25 12 12.57 4.41 3.11 2.58
MW25-15 25 25 25 15 11.89 4.02 2.77 2.32
MW25-18 25 25 25 18 11.30 3.68 2.52 2.05
MW25-21 25 25 25 21 10.91 3.41 2.33 1.88
MW25-23 25 25 25 23 10.54 3.18 2.18 1.76
MW25-28 25 25 25 28 9.76 2.87 1.95 1.57
MW25-33 25 25 25 33 8.92 2.60 1.71 1.41
