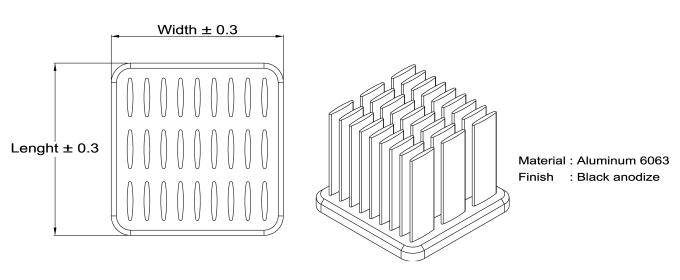

MW 27×27 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW27-12 27 27 27 12 12.30 4.17 2.90 2.46
MW27-15 27 27 27 15 11.63 3.89 2.66 2.23
MW27-18 27 27 27 18 11.05 3.59 2.42 2.01
MW27-21 27 27 27 21 10.67 3.30 2.23 1.85
MW27-23 27 27 27 23 10.31 3.08 2.04 1.66
MW27-28 27 27 27 28 9.54 2.78 1.78 1.47
MW27-33 27 27 27 33 8.72 2.52 1.61 1.31
