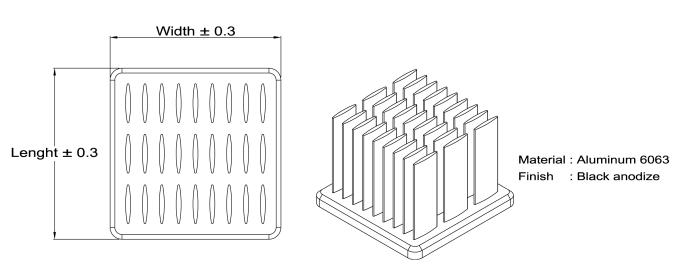

MW 29×29 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW29-12 29 29 29 12 12.11 4.09 2.74 2.25
MW29-15 29 29 29 15 11.45 3.81 2.52 2.02
MW29-18 29 29 29 18 10.88 3.56 2.31 1.81
MW29-21 29 29 29 21 10.50 3.30 2.12 1.65
MW29-23 29 29 29 23 10.15 3.06 1.91 1.53
MW29-28 29 29 29 28 9.40 2.72 1.66 1.28
MW29-33 29 29 29 33 8.59 2.47 1.49 1.18
