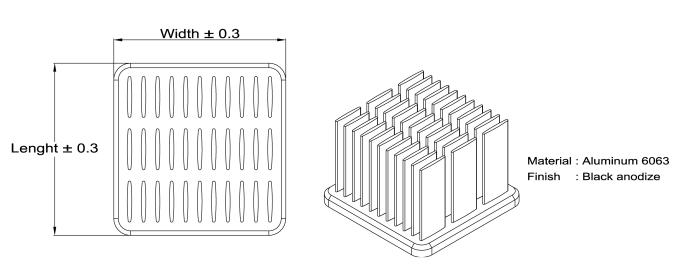

MW 31×31 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW31-12 31 31 31 12 11.80 3.37 2.25 1.87
MW31-15 31 31 31 15 11.17 3.13 2.02 1.66
MW31-18 31 31 31 18 10.61 2.85 1.79 1.45
MW31-21 31 31 31 21 10.24 2.63 1.59 1.31
MW31-23 31 31 31 23 9.90 2.44 1.44 1.21
MW31-28 31 31 31 28 9.16 2.14 1.28 1.06
MW31-33 31 31 31 33 8.37 1.91 1.11 0.93
