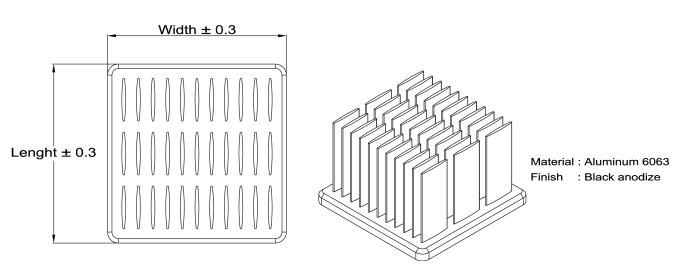

MW 33×33 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW33-12 33 33 33 12 11.29 3.23 2.09 1.76
MW33-15 33 33 33 15 10.68 2.97 1.85 1.55
MW33-18 33 33 33 18 10.15 2.69 1.66 1.34
MW33-21 33 33 33 21 9.79 2.50 1.49 1.20
MW33-23 33 33 33 23 9.46 2.37 1.44 1.11
MW33-28 33 33 33 28 8.76 2.08 1.37 0.95
MW33-33 33 33 33 33 8.01 1.89 1.20 0.86
