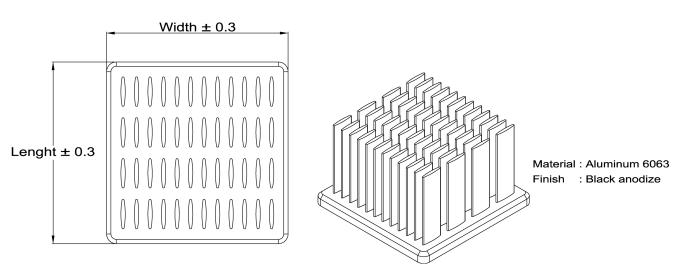

MW 34×34 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW34-12 34 34 34 12 10.97 3.16 2.07 1.70
MW34-15 34 34 34 15 10.37 2.93 1.86 1.51
MW34-18 34 34 34 18 9.86 2.69 1.63 1.30
MW34-21 34 34 34 21 9.51 2.42 1.47 1.17
MW34-23 34 34 34 23 9.19 2.23 1.33 1.05
MW34-28 34 34 34 28 8.51 1.97 1.16 0.90
MW34-33 34 34 34 33 7.78 1.71 0.98 0.74
