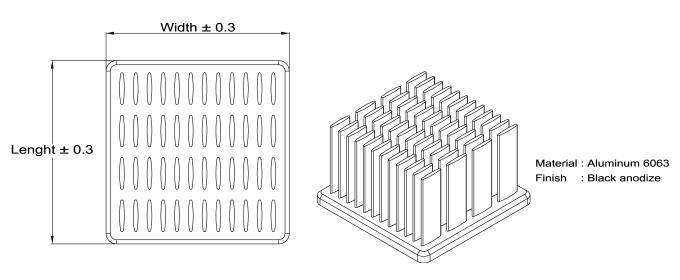

MW 35×35 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW35-12 35 35 35 12 10.64 3.25 2.07 1.64
MW35-15 35 35 35 15 10.06 3.01 1.87 1.46
MW35-18 35 35 35 18 9.56 2.75 1.69 1.27
MW35-21 35 35 35 21 9.23 2.59 1.52 1.15
MW35-23 35 35 35 23 8.92 2.38 1.35 1.01
MW35-28 35 35 35 28 8.26 2.01 1.10 0.82
MW35-33 35 35 35 33 7.55 1.79 0.95 0.72
