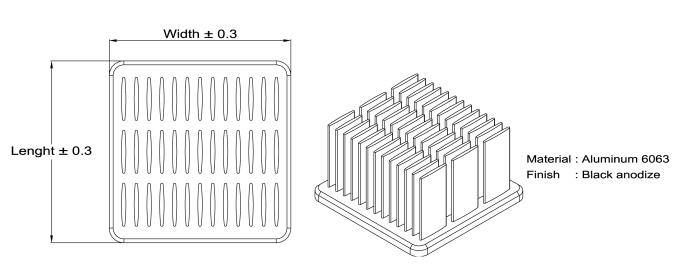

MW 37.5×37.5 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW37.5-12 37.5 37.5 37.5 12 10.14 2.99 1.95 1.57
MW37.5-15 37.5 37.5 37.5 15 9.59 2.72 1.67 1.34
MW37.5-18 37.5 37.5 37.5 18 9.11 2.49 1.45 1.11
MW37.5-21 37.5 37.5 37.5 21 8.79 2.29 1.29 0.96
MW37.5-23 37.5 37.5 37.5 23 8.50 2.12 1.16 0.88
MW37.5-28 37.5 37.5 37.5 28 7.87 1.86 0.98 0.75
MW37.5-33 37.5 37.5 37.5 33 7.19 1.67 0.84 0.64
