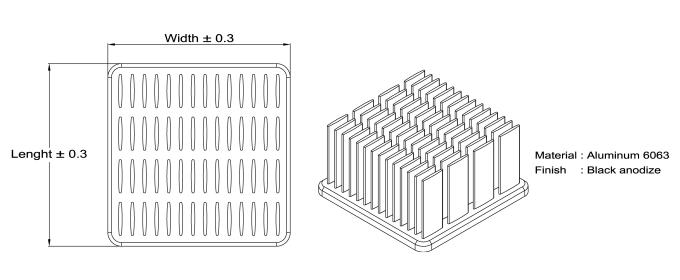

MW 40×40 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW40-12 40 40 40 12 9.70 2.97 1.87 1.52
MW40-15 40 40 40 15 9.17 2.66 1.65 1.29
MW40-18 40 40 40 18 8.71 2.38 1.42 1.06
MW40-21 40 40 40 21 8.41 2.13 1.22 0.91
MW40-23 40 40 40 23 8.13 1.96 1.12 0.83
MW40-28 40 40 40 28 7.53 1.73 0.93 0.69
MW40-33 40 40 40 33 6.88 1.55 0.82 0.59
