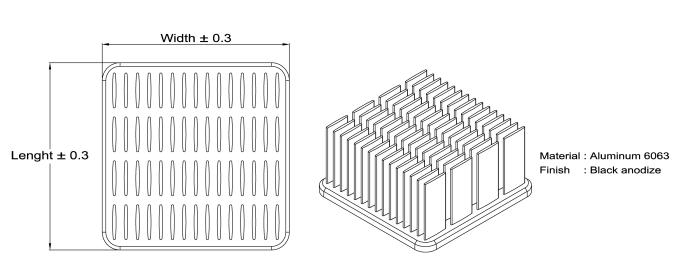

MW 42.5×42.5 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW42.5-12 42.5 42.5 42.5 12 9.25 2.76 1.61 1.26
MW42.5-15 42.5 42.5 42.5 15 8.75 2.48 1.40 1.08
MW42.5-18 42.5 42.5 42.5 18 8.31 2.25 1.21 0.90
MW42.5-21 42.5 42.5 42.5 21 8.02 2.04 1.07 0.81
MW42.5-23 42.5 42.5 42.5 23 7.75 1.86 0.95 0.72
MW42.5-28 42.5 42.5 42.5 28 7.18 1.59 0.79 0.59
MW42.5-33 42.5 42.5 42.5 33 6.56 1.39 0.63 0.51
