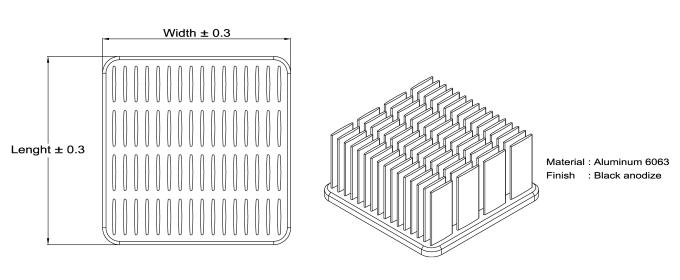

MW 45×45 Series

Part No. Chipset ( mm ) Heat Sink ( mm ) Air Velocity / Rth ( oC/W )
Size Length width height Natural

Convection

 200 lfm 400 lfm 600 lfm
MW45-12 45 45 45 12 8.65 2.65 1.55 1.18
MW45-15 45 45 45 15 8.18 2.42 1.34 1.01
MW45-18 45 45 45 18 7.77 2.19 1.16 0.86
MW45-21 45 45 45 21 7.50 1.99 1.02 0.74
MW45-23 45 45 45 23 7.25 1.86 0.93 0.68
MW45-28 45 45 45 28 6.71 1.62 0.79 0.58
MW45-33 45 45 45 33 6.14 1.44 0.68 0.51
